Article explanations

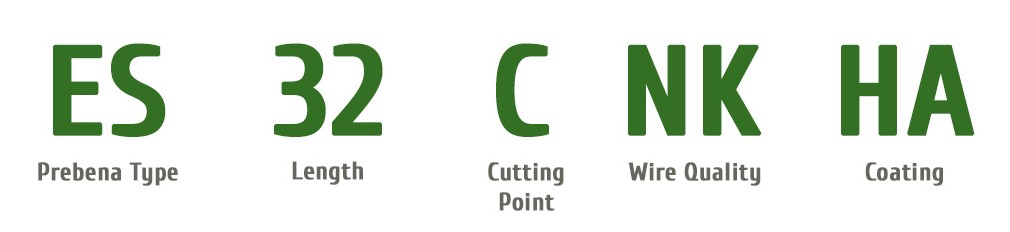

Our item numbers are constructed in a special way. Staples, brads and pins are built like the following scheme:
This is carried out by our quality management determined according to an individual system.
The leg length.
The second position indicates the leg length of the
Staple, brad or pin in millimeters (mm) to:

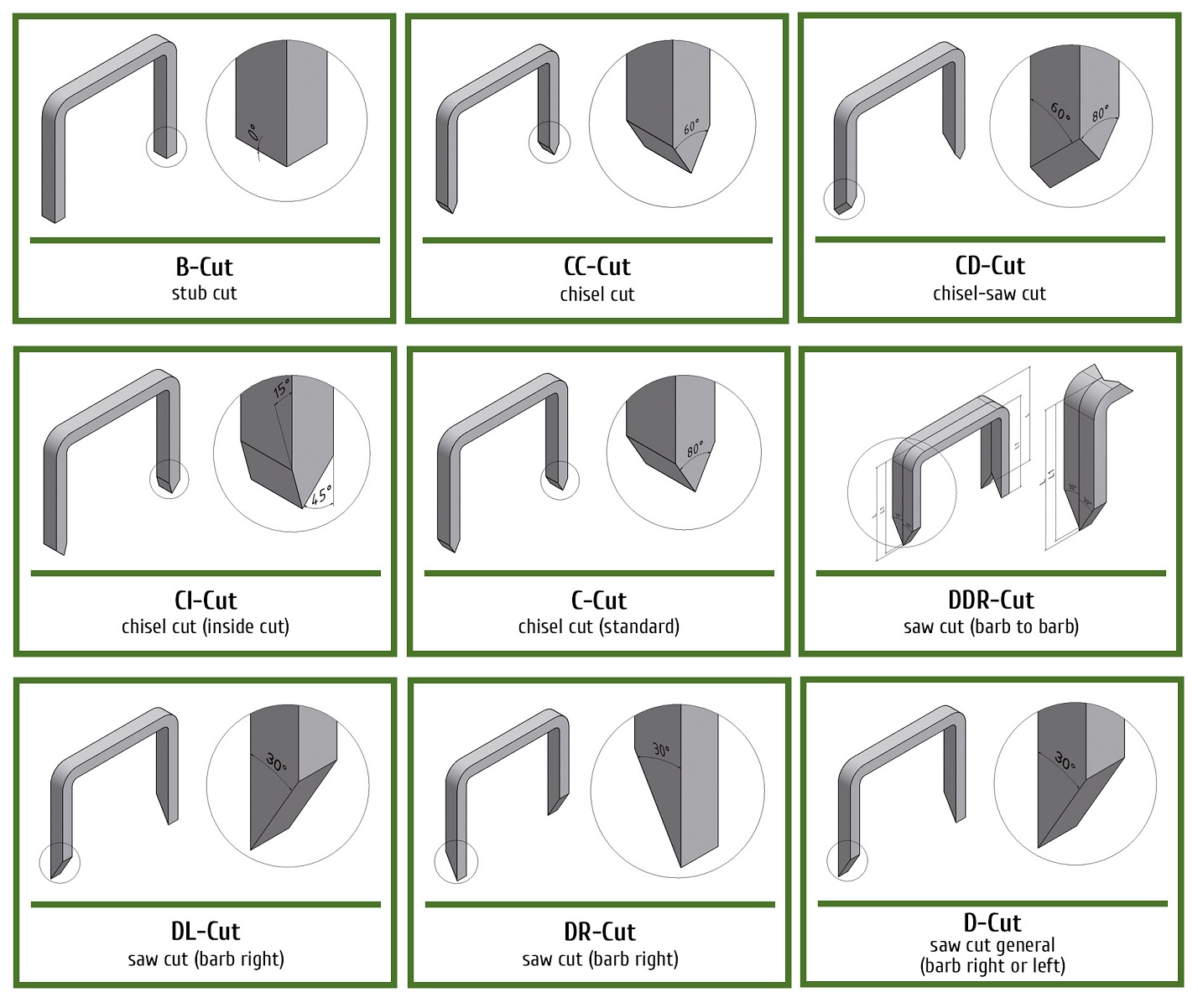

The cut.
This information describes the cut of the wire.
The following cuts have the corresponding meaning:

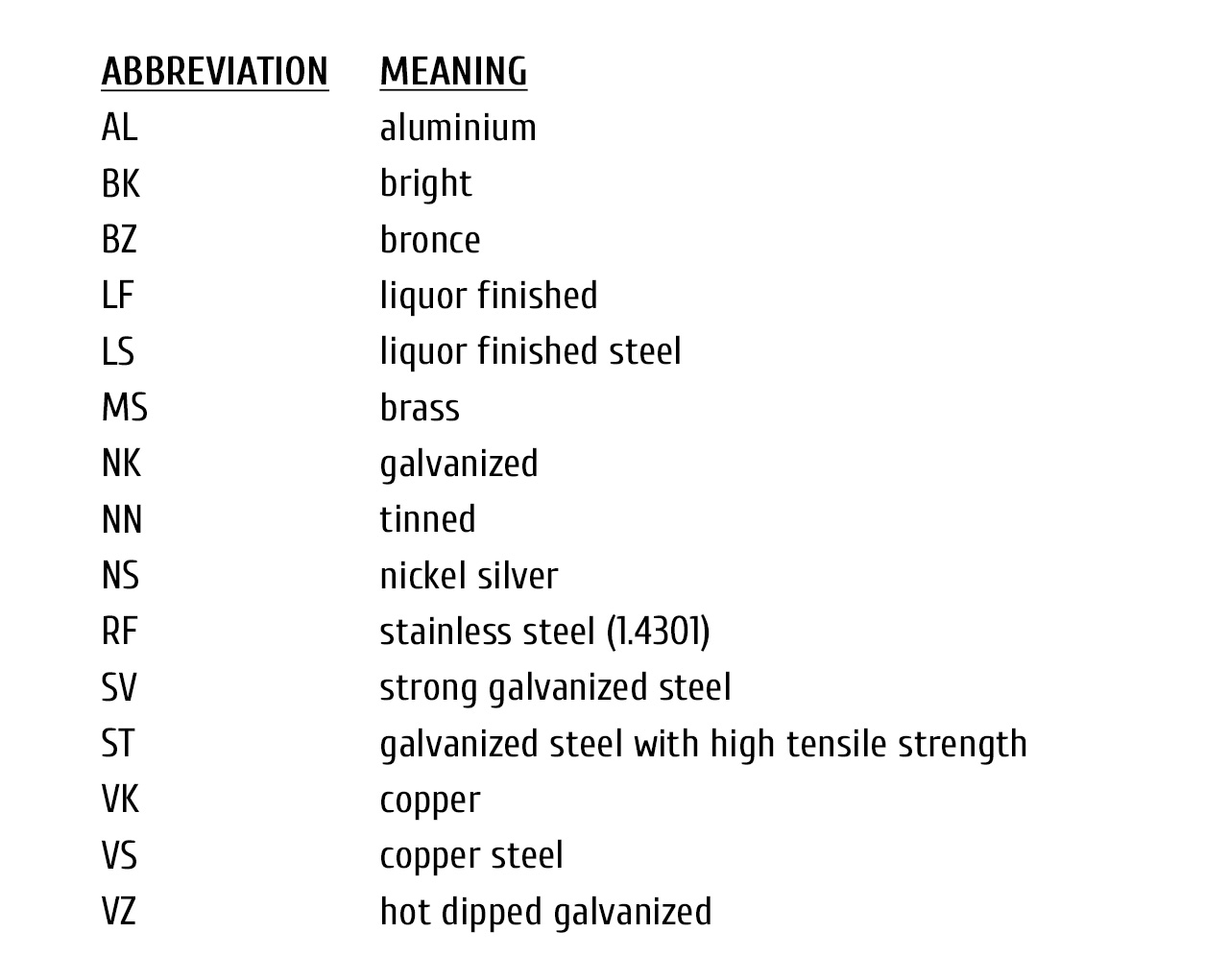

The quality of the wire.
The quality of the wire means the material
from which the staple, brad or pin is made.
There are different versions:
The resinification.
The resin coating HA stands for PREBENA GOLD LOC as standard.
However, further information is available upon request
high-quality resins.
The following figure shows an example of the CE labels of usage class 3 required in DIN EN 14592. Our fasteners conform to the properties required by Eurocode 5.
1. Usage class
2. CE marking
3. Material according to EN 14592:2012
4. Year of manufacture
5. Amount of content
6. Type designation
7. Design of the fastener
8. EAN Code
9. QR code
10. Illustration with dimensions
Structure of our article numbers for nails using the example:
The PREBENA type.
This is carried out by our quality management
determined according to an individual system.
The wire measure.
The wire size indicates the diameter of the nail shaft.
In this case, 28 means a diameter of 2.8 mm.
The nail length.
Nail length
The nail length indicates the length of the nail in millimeters (mm).
The quality of the steel.
The quality of the steel means the material
from which the nail is made.
There are different versions:

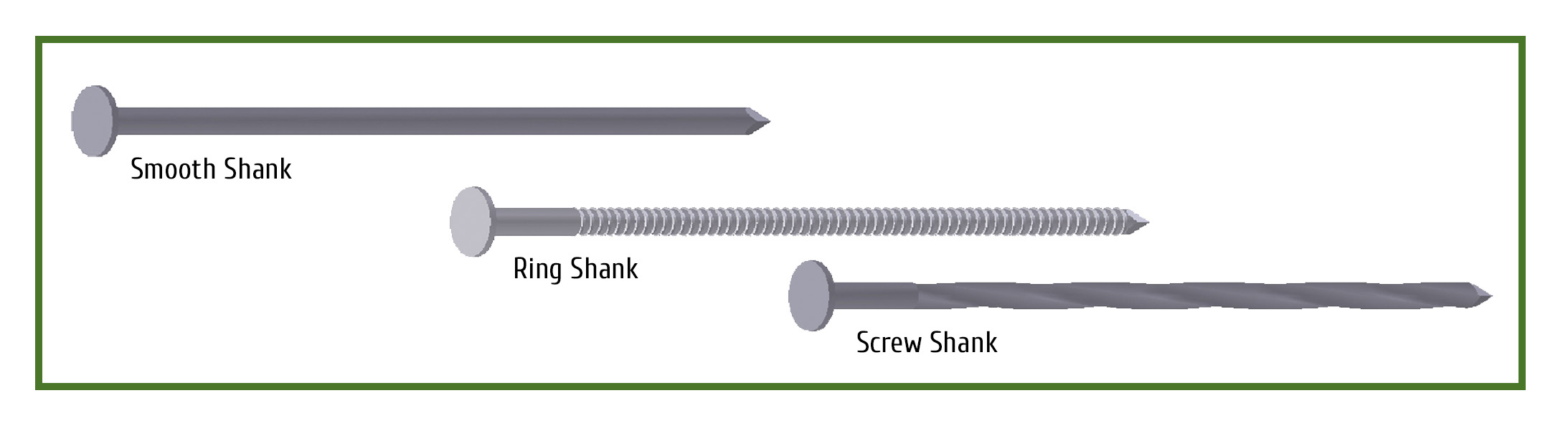

The design of the shaft.
The design of the shaft tells you which one
Shaft type it is.
There are the following versions:

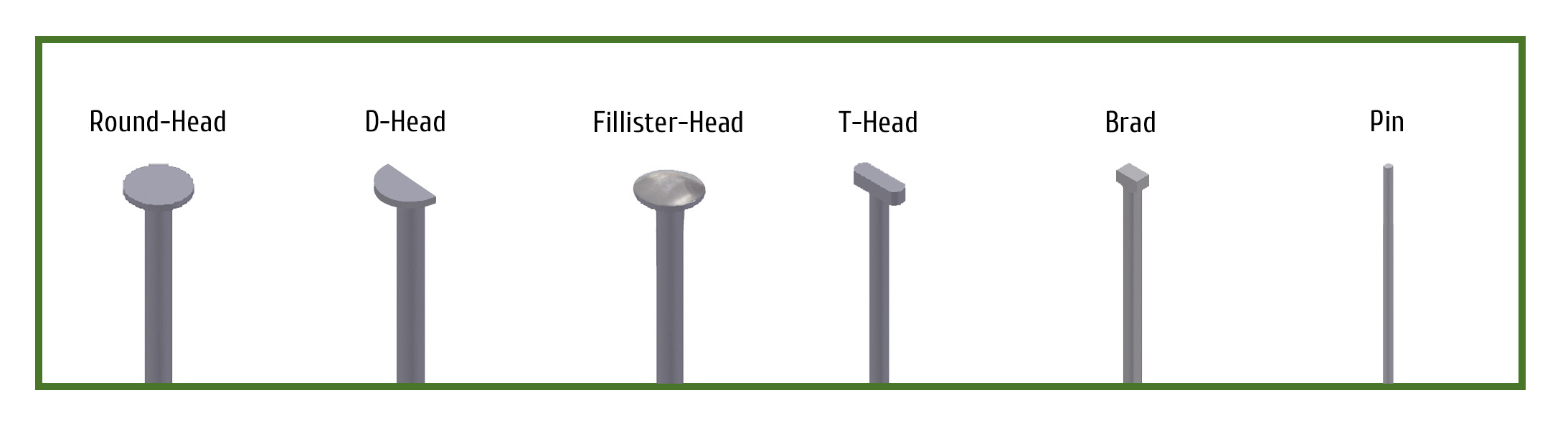

Overview of the different nail heads in the PREBENA range:
The following figure shows an example of the CE labels of usage class 2 required by DIN EN 14592. Our fasteners conform to the properties required by Eurocode 5.
1. Usage class
2. CE marking
3. Material according to EN 14592:2012
4. Year of manufacture
5. Amount of content
6. Type designation
7. Design of the fastener
8. EAN Code
9. QR code
10. Image with dimensions
Structure of our article numbers for compressed air devices using the example:
The housing name.
The number refers to the housing designation
on the housing group of the PREBENA devices.
These groups are staggered according to size and performance.
At GP, for example, the letter stands for German Power.
Overview of the different nail heads in the PREBENA range:
The fastener.
This point shows which fastening material the device is processing.
The maximum length of the fastener.
This number indicates the maximum length that the device can handle.
The length here is again defined in millimeters.
