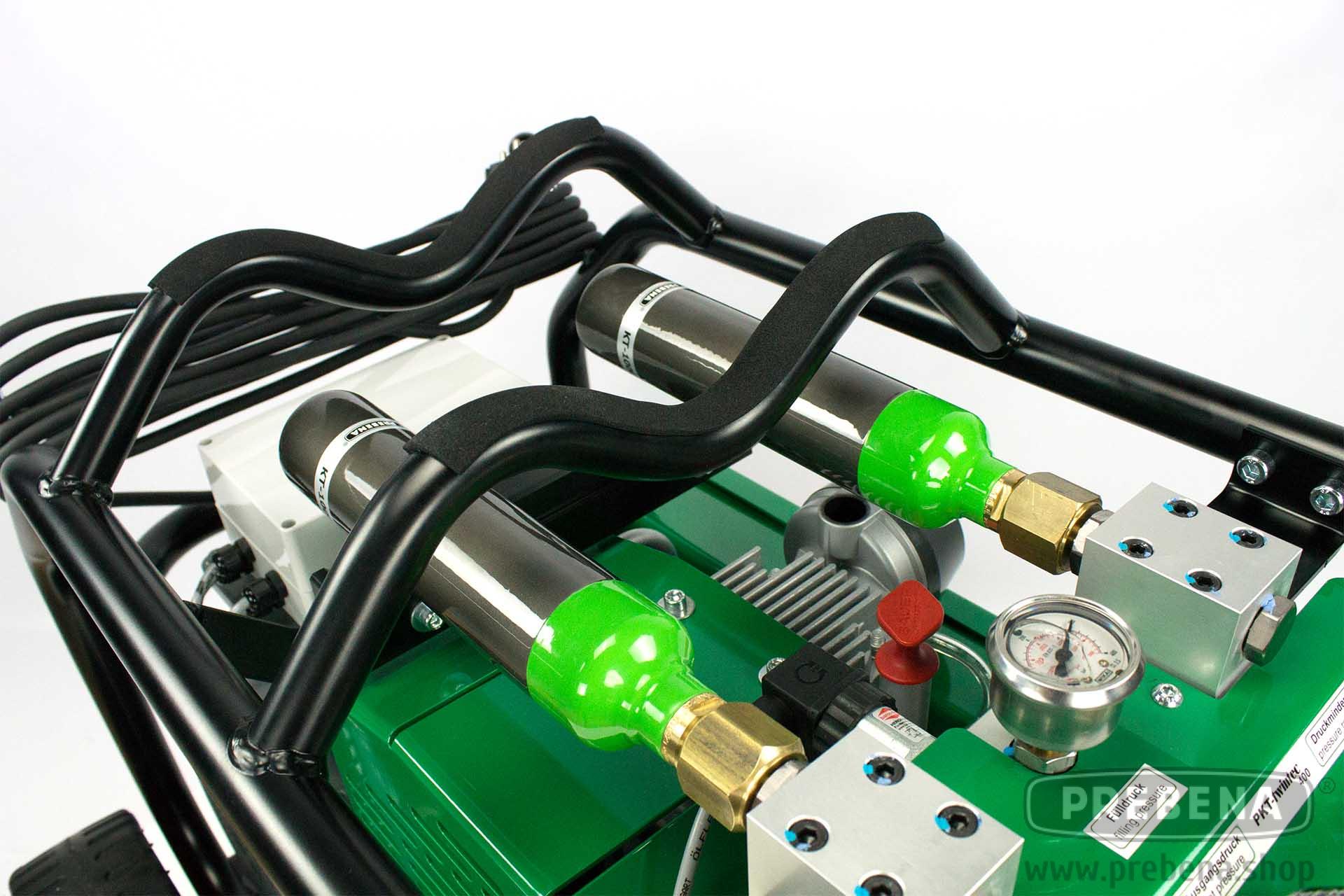

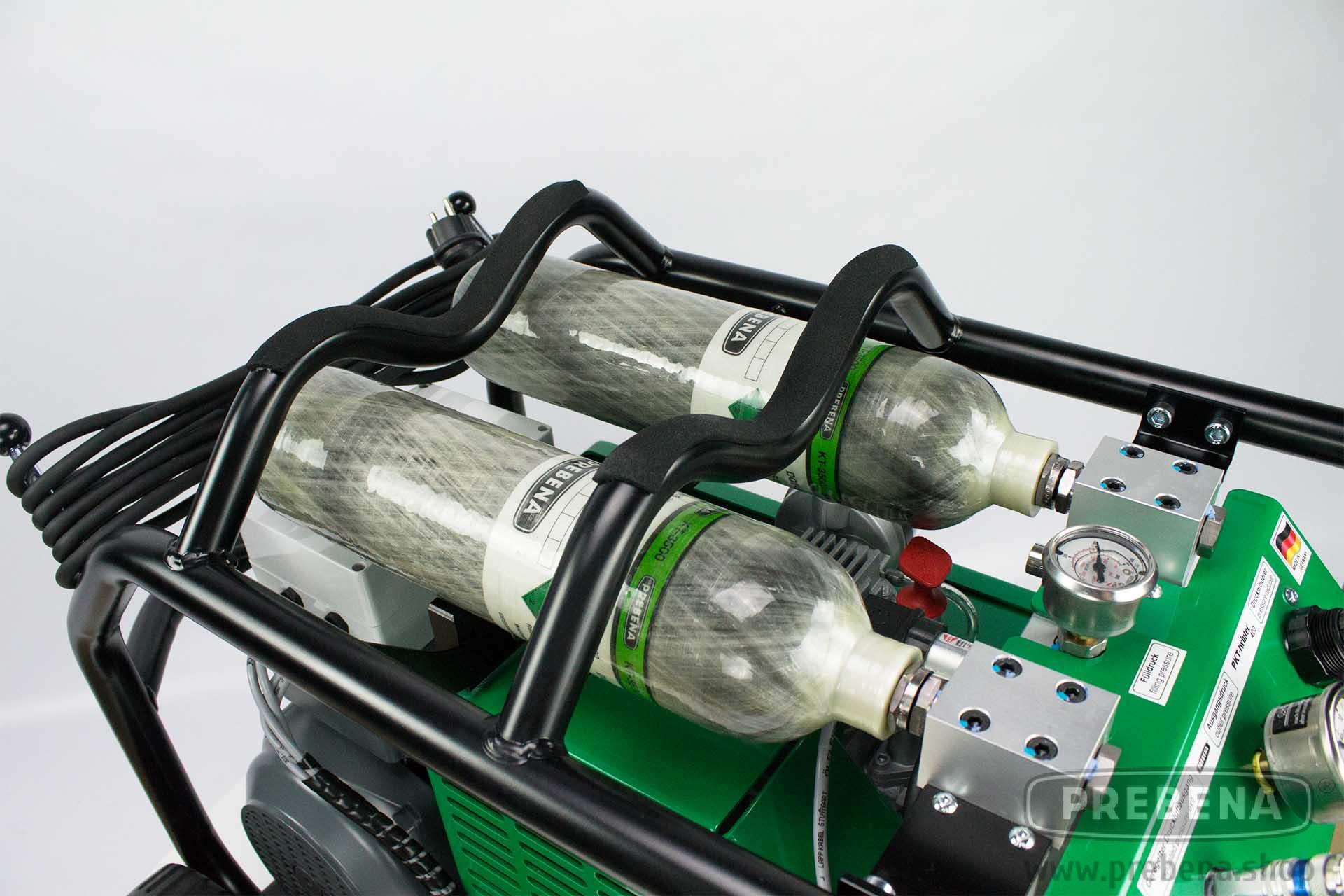

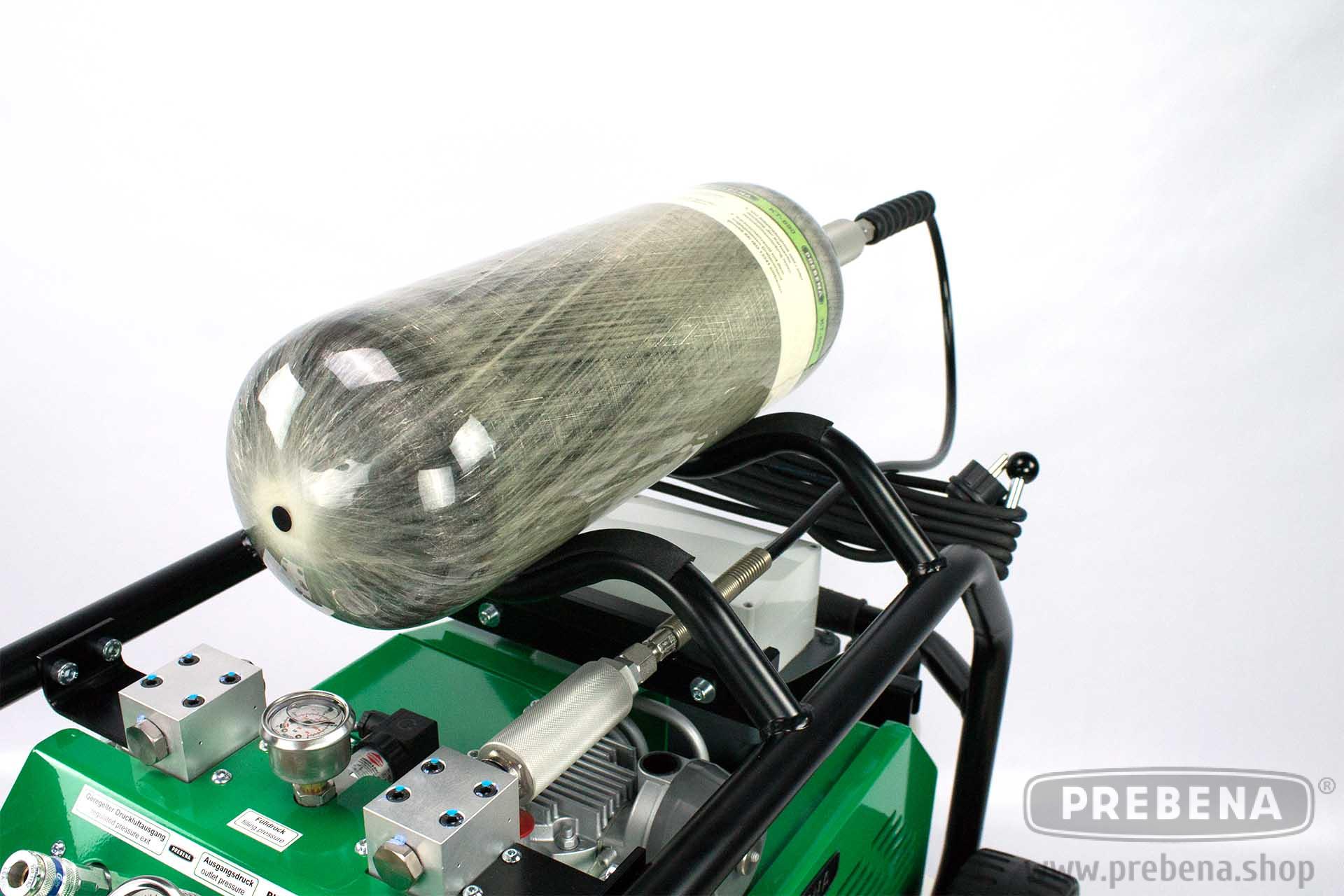

Fast refilling of PREBENA compressed air cylinders, compressed air cylinder = compressor tank, automatic condensate drain, automatic switch-off, automatic restart, solid tubular frame, operating-hour counter, type-examination tested safety relief valve, fully automatic filling valve for filling of 1 or 2 cylinders, folding bow-shaped handle, solid rubber wheels, pressure reducer, regulated compressed air outlet, manometer for filling- and outlet pressure, motor protection,
Suitable for all PREBENA compressed air cylinders:
KT-1000 - with adapter ET00218301 disponible en accessoire
KT-300, KT-470, KT-690 and KT-900 - with filling hose Z400.10 disponible en accessoire
Delivery
In a box on a pallet with: 1 pcs. PKT-TWINTEC 400
Login
Technical details
| Air intake filter: | yes |
|---|---|
| Anti-vibration rubber feet: | yes |
| Bar product finder: | 0-10 |
| CE-electrical connection plug: | yes |
| Cylinder: | 3 |
| Drain valve on the pressure vessel: | automatic |
| Electrical protection (A): | 16,0 |
| Electromagnetical pressure relief: | yes |
| Filling Capacity (l/min): | 100 |

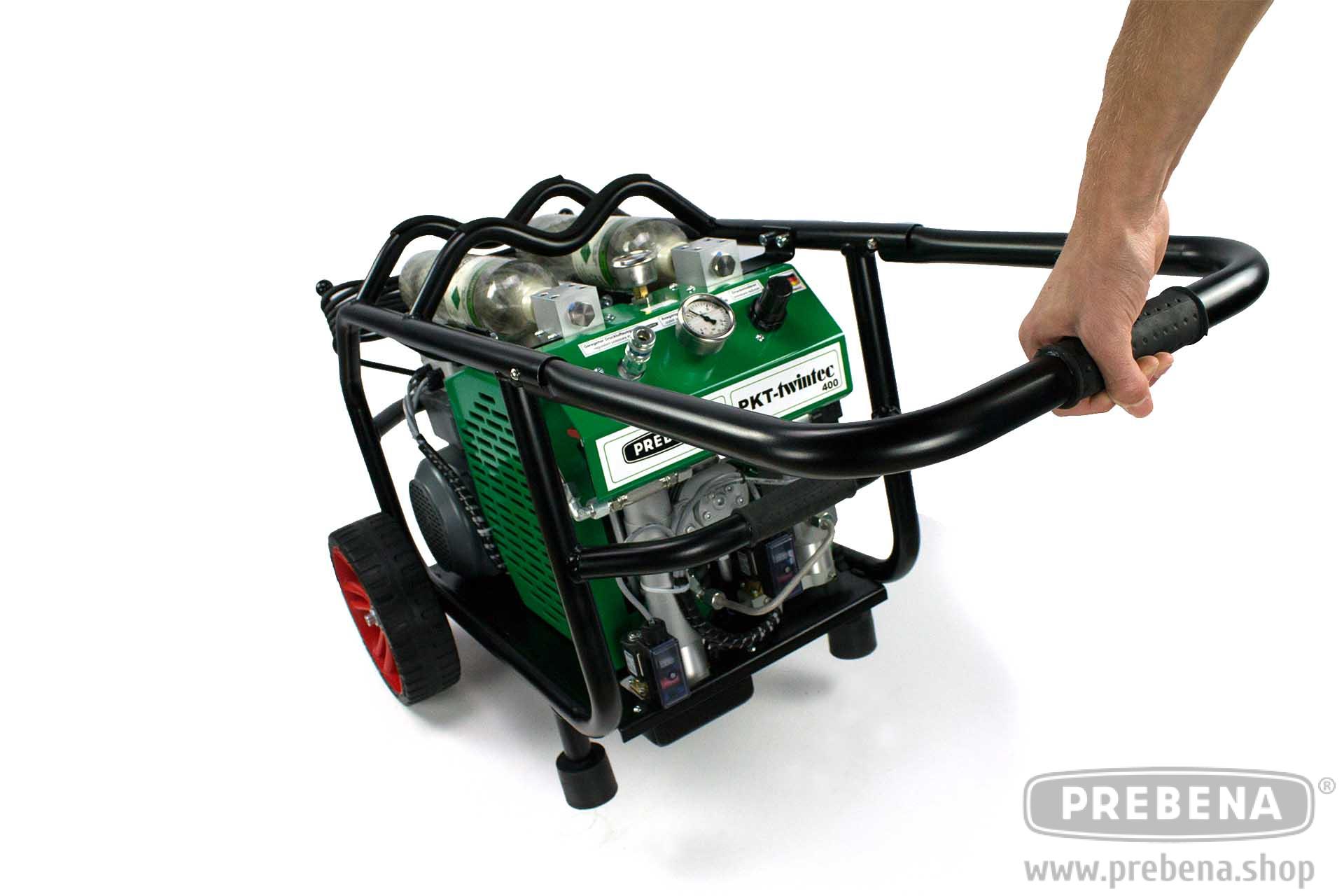

| Foldable transport handle: | yes |
| Frequency (Hz): | 50 |
| Intake capacity (l/min): | 160 |
| Intake capacity-product finder: | 0-200 |
| Max. oressure (bar): | 330 |
| Motor (kW): | 2,20 |
| Motor circuit breaker: | yes |
| Noise characteristics dB (A): | 95 |
| Oil-free / oil-lubricated: | Oil lubricated |
| Pneumatic air connections: | 3 |
| Power cable length: | 5,0 |

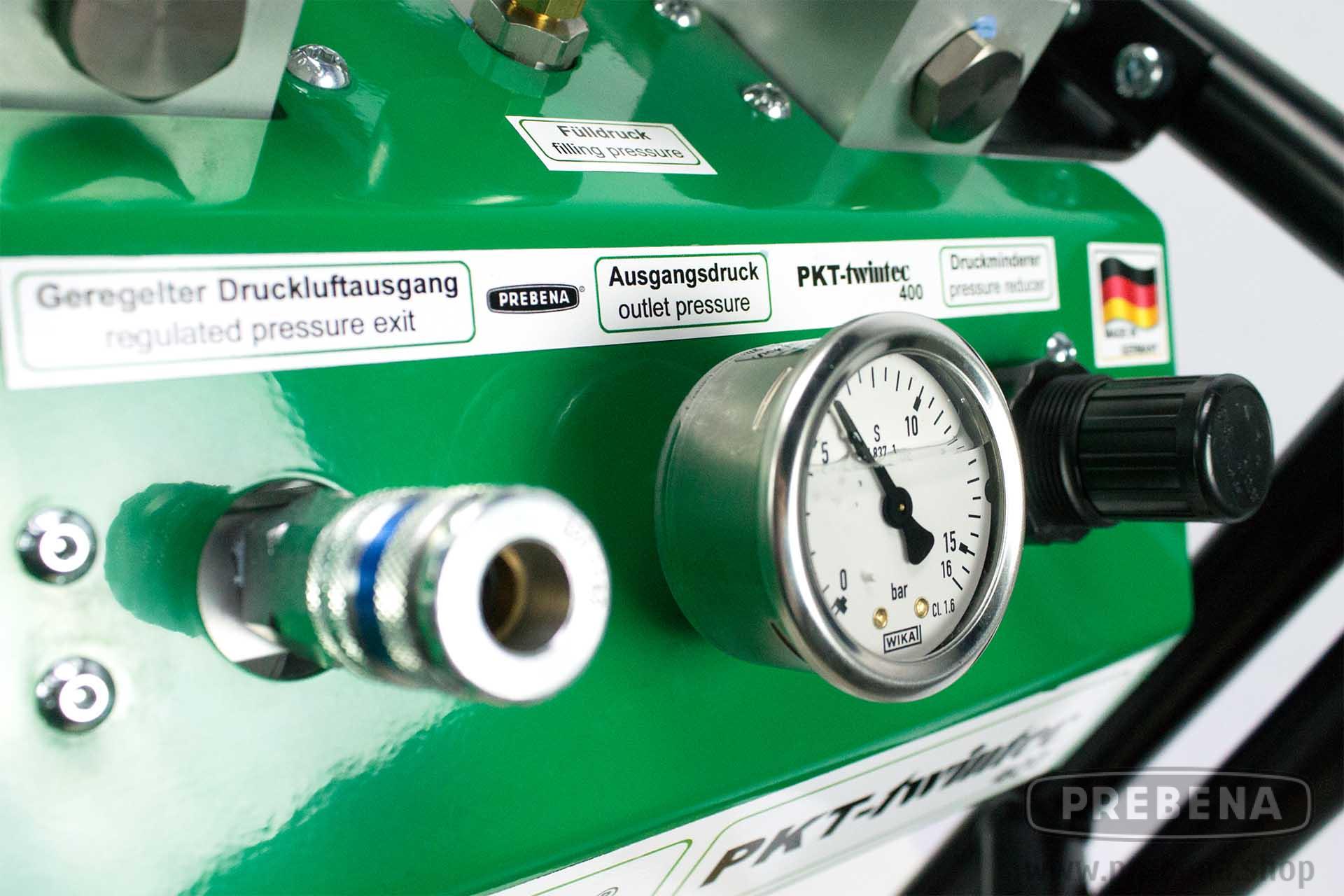

| Pressure gauge: | yes |
| Pressure pipe ventilation: | yes |

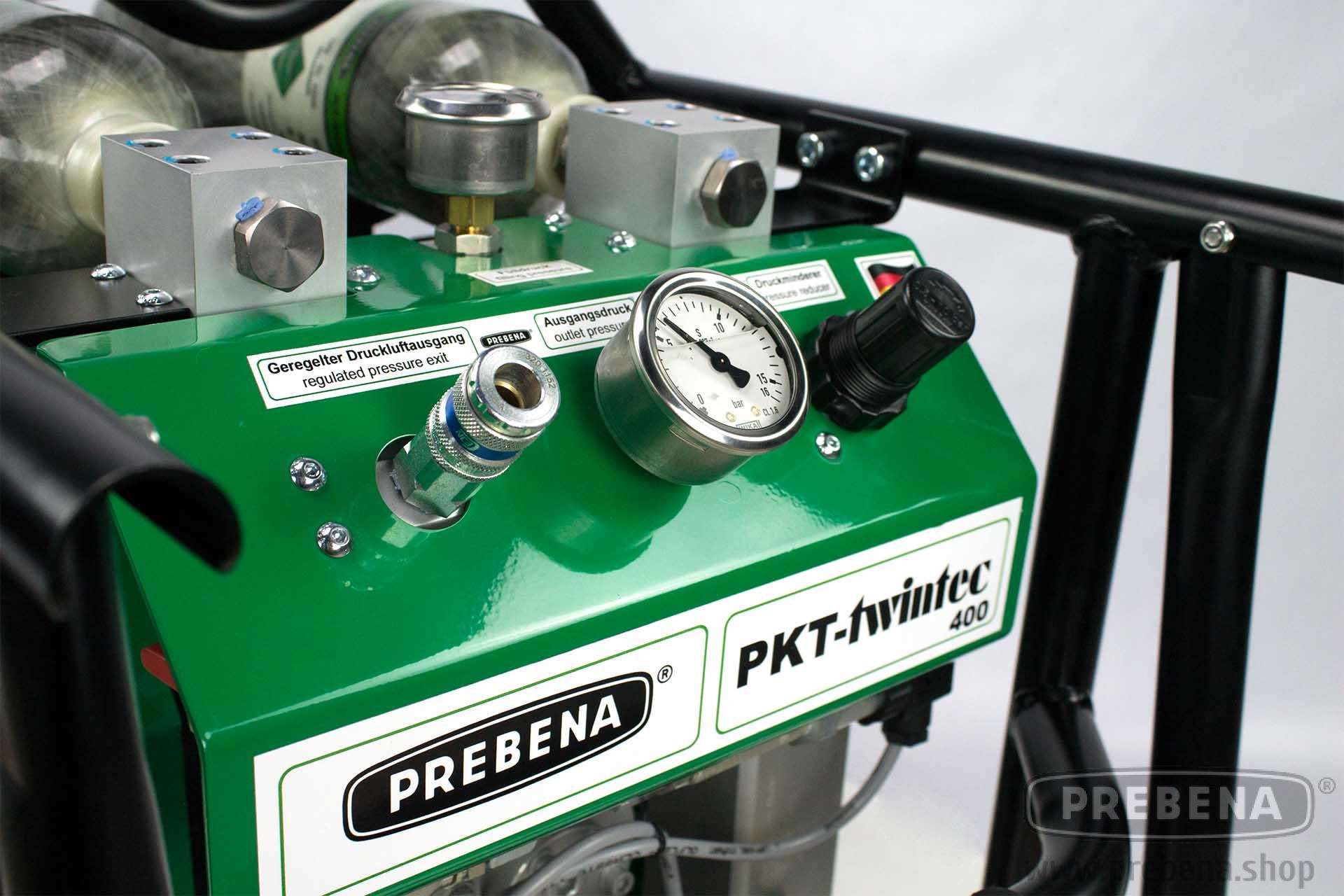

| Pressure regulator with pressure gauge and quick action coupling: | yes |
| Protective cover for engine: | yes |
| Protective cover for pressure regulator: | yes |
| Quality pressure switch: | yes |
| Quick action coupling: | 1 |
| Rubber handle: | yes |

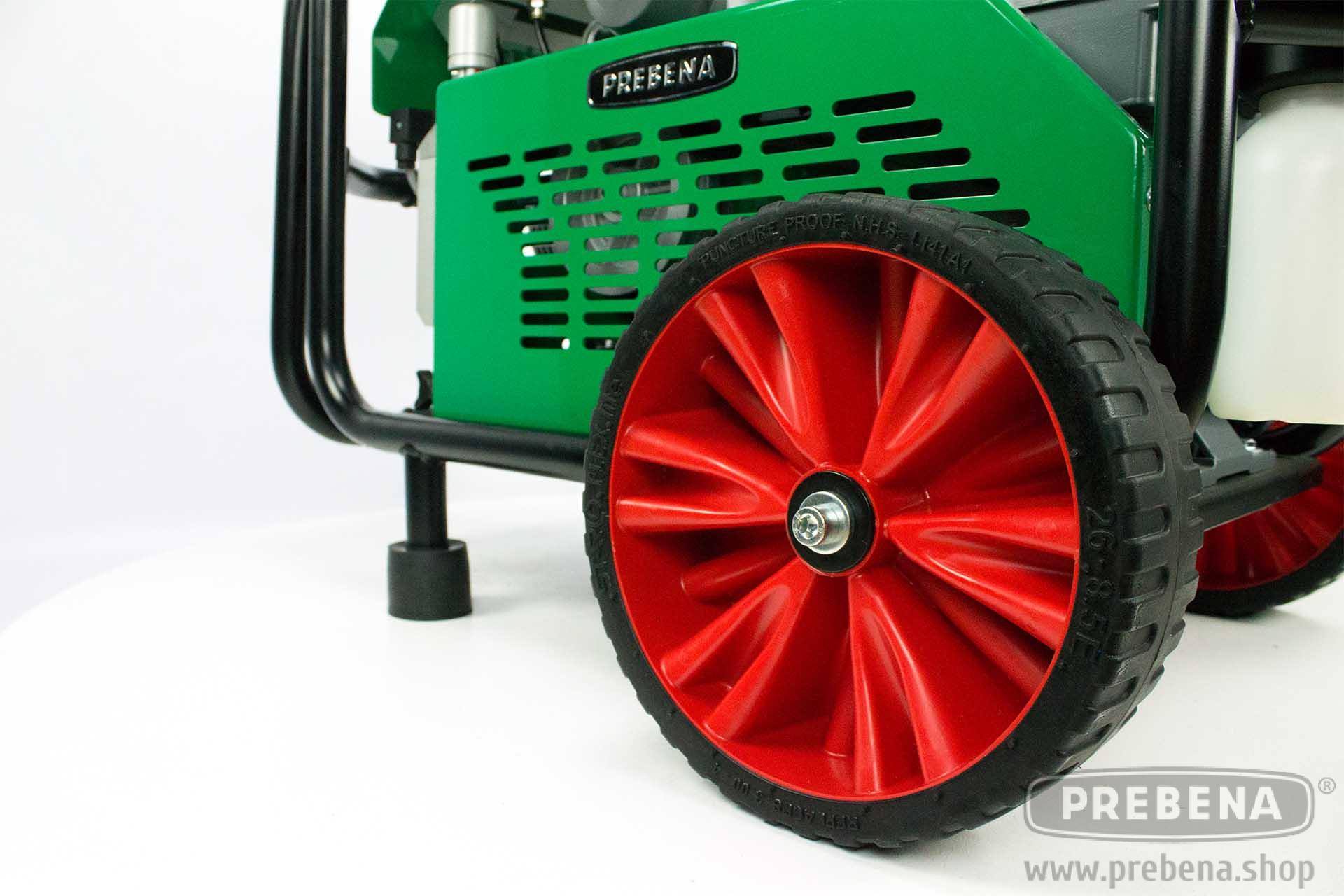

| Solid rubber wheels: | yes |
| Speed (rpm): | 2760 |
| Stationary/Mobile: | Mobile |
| Suitable for filling PREBENA Compressed Air Cylinder: | yes |
| TÜV-certified safety valve: | yes |
| Vessel capacity (l): | - |
| Voltage (V): | 230 |
